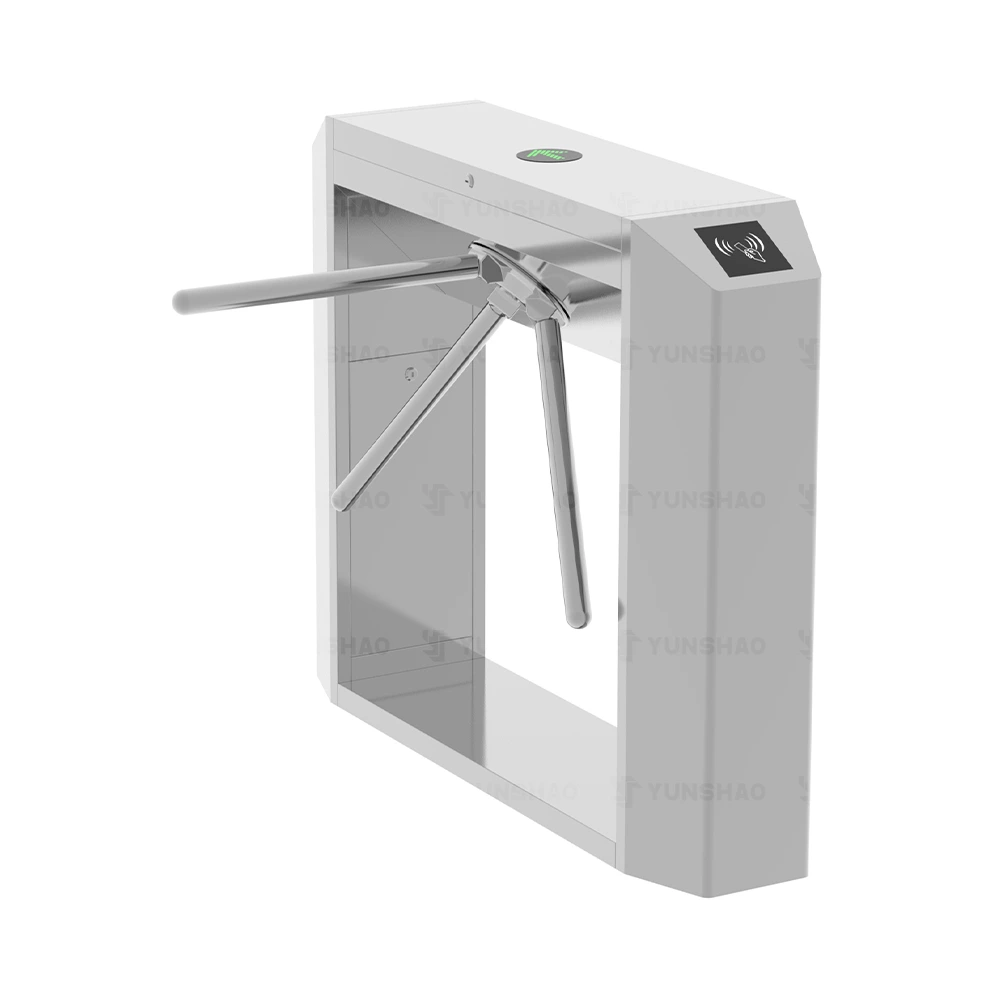

YS-SG01A
YS-SG01A tripod turnstile delivers reliable access control for indoor and outdoor use. Made from corrosion-resistant stainless steel, it supports RFID, QR/barcode, fingerprint, face, iris, mobile credentials, and more. With anti-tailgating, real-time monitoring, and seamless integration via TCP/IP, RS485, RS232, or Wiegand, it’s ideal for offices, gyms, schools, subways, and event venues. Optional features include display screens, temperature sensors, and voice prompts.
$204
Gym
Turnstiles in gyms provide fast, contactless access for members using RFID or biometric options, while tracking attendance to enhance security and streamline entry.
Residential Community
Turnstiles in residential communities ensure secure access for residents and visitors, using ID cards, key fobs, or facial recognition for authorized entry.
Business
These turnstiles offer fast, secure entry for employees and visitors, while also tracking attendance to improve operational efficiency and prevent unauthorized access.
Government
Government turnstiles ensure secure entry using advanced access methods such as facial and fingerprint recognition and password locks, allowing entry only to authorized individuals.
Subway
Crowd control facilities for subway entrances and exits, such as card payment, coin, QR code and face payment, etc. These control crowd ticketing fees.
Airport
Airports use turnstiles with passport/ID scanning and facial recognition to ensure secure, efficient entry for travelers, streamlining security and boarding.
◆ Single-Person Passage Control: The tripod turnstile is designed to allow only one person to pass at a time, effectively preventing tailgating and unauthorized entry.
◆ Semi-Automatic Operation: This model features a semi-automatic mechanism. After access is granted, users need to gently push the arm to pass through.
◆ Indoor & Outdoor Installation: Suitable for both indoor and outdoor use, with a durable stainless steel body and IP56 protection rating for weather resistance.
◆ Flexible Access Authentication: Supports integration with various authentication methods such as RFID cards, fingerprints, facial recognition, QR/barcode scanning, and password keypads.
◆ Emergency Drop Arm Function: In the event of a power outage or emergency, the arm will automatically drop to ensure unobstructed evacuation.
◆ Bi-Directional Control: Passage direction can be set as single-way or two-way, allowing flexible traffic management.
◆ Anti-Tailgating and Anti-Reverse Protection: Built-in logic and sensors prevent unauthorized following or reverse entry.
◆ Wide Range of Applications: Perfect for office buildings, gyms, residential complexes, subways, government facilities, and airports requiring secure and efficient access control.
◆ Access Control System Platform: We provide a complete access control management software platform to manage user access, permissions, logs and device configuration.
◆ Flexible System Integration: Supports Relay, RS485, RS232, TCP/IP, and Wiegand for easy connection with third-party access control systems.
◆ SDK & API Support: Provides full SDK and API documentation for smooth software integration and custom development.
Drawing Dimensions and Parameters
| Model | YS-SGZ01A |
| Product Size | 1200*280*980mm / 47.2*11*38.6in ( L*W* H ) |
| Product Weight | 55KG |
| Product Color | Silver (Customizable) |
| Passage Width | ≤550mm / ≤21.7in |
| Door Arm Material | 304 Stainless steel |
| Framework Material | Default 304 stainless steel (Optional 201 or 316 stainless steel) |
| Mechanism Type | Semi-automatic (Fully automatic optional) |
| Power Supply | AC 220V/ 110V, 50/60Hz |
| Operating Voltage | 24V DC |
| Rated Power | 50W~80W |
| Passing Direction | Single Directional / Bi-directional |
| Flow Rate | 20-60 People/ Minute |
| Operating Time | 0 .2 seconds |
| MCBF | 3 ,000 ,000 Cycles |
| Emergency Function | Automatic arm open when power off |
| LED Indicator | Two LED indicators (Green → Entry, Red × No Entry) |
| Communication | Dry contact , Relay Signal , Rs485 |
| Access Control | RFID card, Access wristband, QR code, Fingerprint, Facial recognition, Password, ID card, Coin, Remote control |
| Application Scenarios | Gym, Event venue, Government, Residential, School, Subway, Office, Construction site, Airport |
| IP Rating | lP54 |
| Operating Temperature | -30 ° C ~ 70 ° C |
| Storage Temperature | -30 ° C ~ 70 ° C |
| Working Environment | Indoor/Outdoor |
Customization Options
Body Color & Lighting: Custom housing colors (e.g., black, grey, silver) and LED light colors to match your environment.
Cabinet & Arm Materials: Options include stainless steel, tempered glass, acrylic, etc.
Gate and Swing Arm Dimensions (Height, Width, Length): customizable to suit different space and security requirements.
Exterior Design: Custom layout for card reader position, indicator lights, top covers, and overall design.
Access Control: Supports RFID cards, face recognition, QR/barcode, fingerprint, palm vein, etc.
Integration: SDK/API available for seamless connection with your access control or ticketing platform.
Communication Protocols: RS485, RS232, Wiegand, Relay, TCP/IP, Wi-Fi, 4G, and more.
The number of gates and lane widths can be customized according to the site layout to ensure smooth passage for all users.
FAQ
Of course. We can customize our products to your project needs and can provide custom product sizes and colors, as well as a variety of access control integrations.
Of course. We provide API, SDK, RS485, and other protocol documentation. Additionally, we offer our proprietary access control platform software if needed.
Yes. Our turnstile gate use dry contact signals and can be controlled by any system with relay output. We also offer our own access control systems including RFID, fingerprint, facial recognition, QR/barcode, and ticketing solutions.
No MOQ is required. You are free to order in any quantity. We offer tiered discounts based on order volume.
Installation is simple. Most assembly is completed before shipment. You only need to fix the turnstile with screws and connect the power and network cables. Detailed installation instructions and technical support are provided.
All of our products come with up to a 2 year warranty, reflecting our confidence in their quality and durability.
Standard Products: 5–10 working days
Customized Products: 15–20 working days
Actual delivery time may vary depending on the order.
All products are shipped directly from our factory in Shenzhen. Leveraging Shenzhen's advanced logistics network, we offer sea, air, land, and express shipping. We will select the most suitable shipping method based on your location, preferences, and order details to ensure safe and timely delivery.
We support a wide range of international trade terms, including EXW, FOB, CIF, DDU, DDP, CY/CY, FCA, FAS, DAP, and DPU. The terms can be selected based on your project requirements.
We accept bank transfers, credit cards, and various online payment platforms to ensure smooth and convenient transactions.
Our company is based in Shenzhen, Guangdong Province, China.
